Technical Specs
Motor
All INNOVA machines are equipped with a 3000 stitch per minute one horse motor. This allows for faster more efficient quilting and better stitch regulation. The strong motor is capable of piercing multiple layer seam allowances without stalling. Coupled with the patented hopping foot, it easily accommodates the bulk found in the most difficult areas of your quilt. M Series motors have also been relocated to be in line with the lower drive shaft, stabilizing the center of gravity and improving machine smoothness.
Driveshaft
INNOVA has the largest driveshafts of any longarm quilting machine on the market today. They are supported by sealed ball bearings which eliminate the need for oiling or greasing the upper end of the machine, ensuring that your quilts stay clean.
Rotating Sew Head
The patented swivel sew head is exclusive to the INNOVA. This unique feature is included with all INNOVA quilting machines and makes adding innovative accessories, changing feet, removing broken needles, and completing preventative maintenance a breeze.

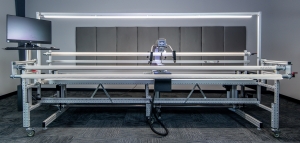

Pro Frame
The commercial quality INNOVA Pro-Frame is designed to maximize efficiency and ease of use. The gas-assisted, top fabric roller lifting system provides easy access to straighten and inspect batting. Our unique fabric stationary quilt backing roller eliminates the need for raising and lowering as the quilt take up roller increases in diameter.
Pro-Frame Accessories:
Electric Channel Locks
These use electromagnets to stop and hold the machine in either the x-axis or y-axis, making it easier to stitch straight lines.

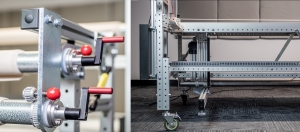

Locking Casters
These replace the machine leveler legs that come standard on the Pro-Frame, making it easy to move your INNOVA system around and lock it into position.
Pro Frame Specs:
- 10’ or 12’ length (custom sizes available)
- Perforated extruded aluminum tubing
- Adjustable height up to 13”
- Machine leveling legs
- 2" diameter stainless steel rollers
- Gas assisted lifting top fabric roller
- Adjustable two bar take-up roller system
- Adjustable stationary quilt backing roller maintains a perfectly level quilt bed
- EZ Lock roller system provides infinite adjustment of fabric tension
- Super glide carriage system for effortless movement
- Manual channel locks
- Heavy-duty, laminated wood tabletop that doubles as a cutting table
- Includes leaders and 2 side clamps
Stitch Regulation

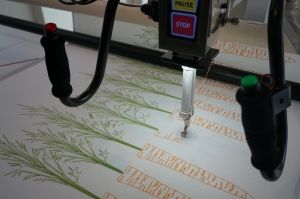

INNOVA longarm quilting machines are shipped with our Lightning Stitch regulator. The stitch regulator regulates the machine speed based on operator movement to control the stitches per inch in and out of corners as well as in turns and tight radii. It is fully programmable through the PLC operator interface. The number of stitches per inch are adjustable from 2-22. When in regulated mode, the machine will automatically accelerate and decelerate based on the quilting operator's movements. Among the many functionalities included are cruise and basting mode.
Software Compatibility

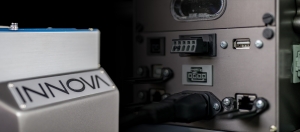

The M Series has been constructed with a sleek design in mind—all wiring is now internal. It also features 64-Bit software, which has more power to execute a greater number of tasks, such as initiating a new pattern. This means that your software will run faster and bring less headaches. The updated M Software has bigger buttons, altered layouts, and a horizontal orientation for enhanced user interaction.
M Series software is simple to launch as most of the hardware is already built into the machine. For quick installation, simply plug in the provided hardware and activate the software with a personal serial number provided after purchase.
AutoPilot Mach3
Adding this digital system will increase your efficiency and productivity by automating patterns and allowing the machine to quilt for you! This software features our Perfect Corner Technology that will help you achieve precise 90° angles every time.
Grand Format Embroidery
for AutoPilot Mach3
With the addition of this component, the INNOVA AutoPilot Mach 3 system becomes a hoop free embroidery system!
PantoVision T2
This software is a digital pantograph system that enables you to create hand-guided patterns with ease!
Steps to get your Free 14 Day Trial for AutoPilot™ Simulator:
- Get your serial number by clicking here, fill out the form and hit the SUBMIT button.
*Your serial number will arrive in the email you provided. Check your junk folder if you do not see it right away. - Download the AutoPilot Mach 3 Simulator Free Trial Version here.
*You will need a minimum of Windows 8 pro 64bit. - Follow the prompts to install and activate the simulator with your provided serial number.
*If you get a message saying MSFT Defender is protecting your computer, click more and run anyway. - Enjoy your AutoPilot™ Mach 3 Simulator Free Trial Version for 14 days, then contact your local INNOVA dealer to order your new AutoPilot™ Mach 3 and enjoy those features for the lifetime of the product!
